Model: CPC-12A
Details:
◆ Name: CPC-12A manual integral hydraulic rebar shears
◆ Uses: This product is the latest research and development of high-precision hydraulic cutting tools for round steel, rebar and other materials shear. Not suitable for the stainless steel shear.
◆ FEATURES: and effort to apply, easy to carry, suitable for field operations at the factory for mass production.
◆ use the method:
1 prior to use compressed air a few times to check the head is aligned or dislocation.
Shear round steel round bar shear plane perpendicular to and round bar tilted to one side, should immediately stop the cut, re-arranging, otherwise it will create a head injury, such as shear.
3 Cut, clockwise to tighten the oil return switch, shaking the handle, hydraulic pressure, piston advancing blade to cut reinforced, completed shear, stop boost in order to avoid damage to the blade.
Loosen the oil return screw heads automatically retract. The tool when not in use, you must tighten the oil return screw Pneumatic looked again stored in the fuel tanks of a certain pressure, to avoid piston parts oil spill.

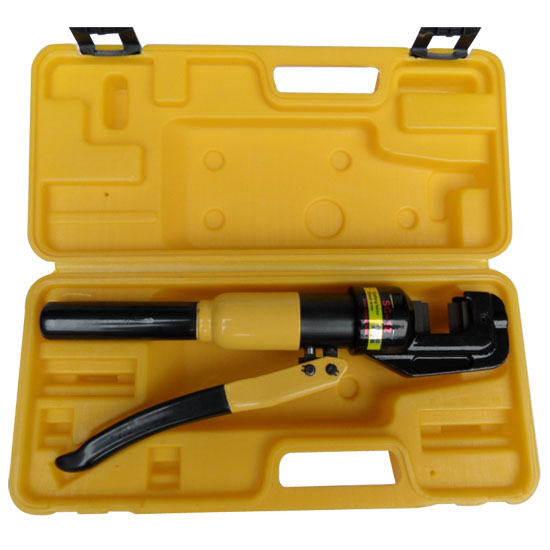

◆ packaging: plastic box.
◆ Technical parameters:
|
Model |
Output（T） |
Cut range(mm) |
Stroke（mm） |
Size(mm) |
Weight（kg） |
|
CPC-12A |
8 |
φ4-φ12 |
11 |
305X100X55 |
1.6 | |
