Name: SLK-2 aluminum card line
Model: SLK-2
Details:

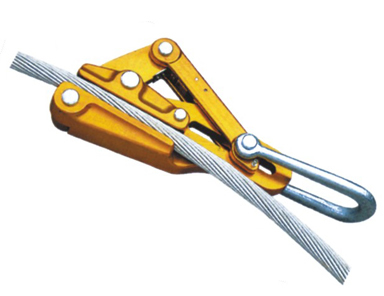

◆ Uses and characteristics: SLK-, SLK-SLK-3 aluminum wire card thread is used for overhead power lines to tighten the wire and adjust sag use, suitable for strand and ACSR. Alloy steel forging crafted, small size, light weight. Sharp jaws clamping force. The jaw is equipped with a safety device, not jumpers. Gear with a special heat treatment, high tensile strength, high meshing force, easy to slip deformation.
◆ Technical parameters:
|
Model |
SLK-1 |
SLK-2 |
SLK-3 |
|
Rated load |
8KN |
16KN |
30KN |
|
Applications |
LGJ25-70 |
LGJ95-120 |
LGJ150-240 |
|
Weight |
1.1kg |
1.5kg |
1.8kg |
|
Maximum opening |
13.5mm |
17.5mm |
24mm |
