Product Name:SWG-25 Hand hydraulic pipe bender


Product details:

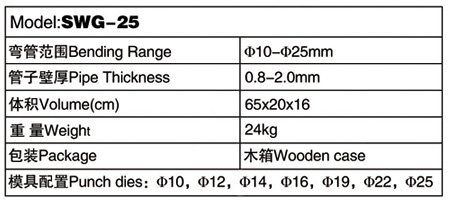

Name: SWG-25 manual pipe bender
Model: SWG-25
Details:

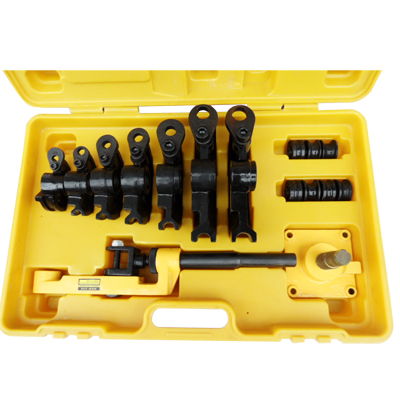

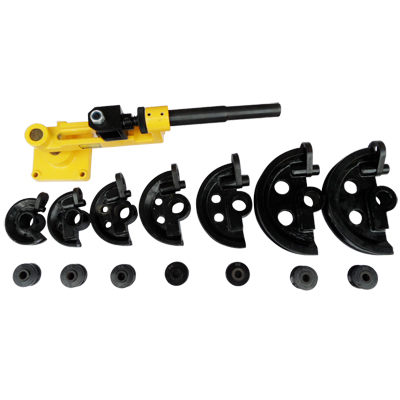

Uses and characteristics: SWG-25 manual pipe bender, bending thin-walled low pressure liquid delivery tube bending machine developed in recent years to apply to cold conditions. Such as brass, aluminum pipe, steel pipe and stainless steel pipe. The machine is simple in structure, easy to operate, curved arc smooth surface, no deformation and wrinkles. Widely used in construction, chemical, plumbing, petroleum, coal, shipbuilding and other industries. Random with Φ10, Φ12, Φ14, Φ16, Φ19, Φ22, Φ25 seven tube mold. Such as pipe specifications can be customized mold
Use: first base 1. ⑵. Selected according to the size of the elbow sub the desired die and rollers. first mold caps into the base of the shaft, then the bracket set into the shaft of the wheel into the positioning block 12 sets of fixed bolts. ⑷. Stent Go to wobble board 11, and then bend the tube is inserted between the die and rollers, adjusting nut, die, tubes, wheel three fit firmly. Then turn the handle to be bent.
