Name: EP-410 overall hydraulic crimping pliers
Type: EP-410
Details:

◆ Name: EP-410 overall hydraulic crimping pliers
◆ Use: apply to electricity, communication, mining, metallurgy, petrochemical, and boating industry of copper, aluminum terminals and connecting pipe crimping. ◆ Features: ⒈ hexagonal mold, has crimp dense, small resistance characteristics.

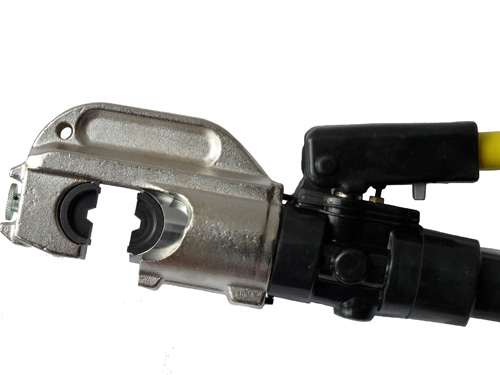

Two hydraulic double-speed apparatus, shaking the handle, the pressure rises, the crimping dies quickly sent to crimp, and then automatically converted to low speed, for crimping, the pressure received bit will be slightly Crash warning sound, represents the completion of the crimping. Saves time and effort, and easy to apply. Head freely rotated 180 degrees, to facilitate the work of the narrow place. Safety protection device in the body design at the same time, to avoid over-voltage. Fiberglass insulation handle prevents accidental electric shock.
◆ standard mold: 50,70,95,120,150,185,240,300,400 square millimeter

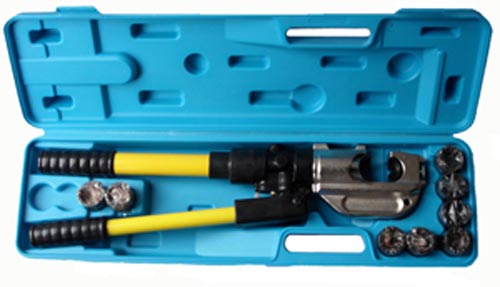

◆ Packing: plastic box
◆ Technical parameters:
Model crimping range (mm2) output
(T) stroke
Oil volume (mm)
(CC) crimped shape weight
(Kg)
EP-410 50-400 12 32 145 Hexagon 6.4
