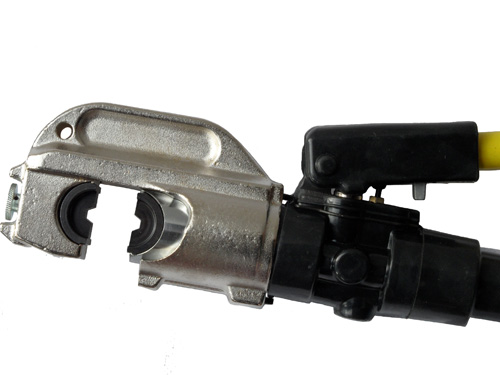

Name: EP-431 overall hydraulic crimping pliers Model: EP-431 Details:

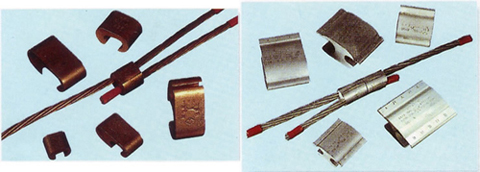

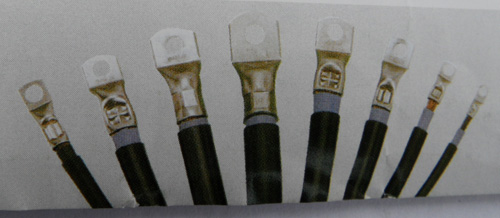

◆ Uses and characteristics: EP-431 overall hydraulic crimping pliers applies to electricity, communication, mining, metallurgy, petrochemical, boating industry, copper, aluminum terminals and connecting pipe crimping. ⒈ hexagonal mold crimp dense, small resistance characteristics. Two hydraulic double-speed apparatus, shaking the handle, the pressure rises, the crimping dies quickly sent to crimp, and then automatically converted to low speed, for crimping, the pressure received bit will be slightly Crash warning sound, represents the completion of the crimping. Saves time and effort, and easy to apply. Head freely rotated 180 degrees, to facilitate the work of the narrow place. Safety protection device in the body design at the same time, to avoid over-voltage. Glass non-slip fiber insulated handle to prevent accidental electric shock. ◆ crimping range: copper terminals :16-400mm2. Aluminum terminal: LGJ35-95mm2. The clamp pressure pipe: clamps 240mm2 below; 240mm2 H type and C-type clamps. Φ31mm copper and aluminum wiring. ◆ standard mold: 50,70,95,120,150,185,240,300,400 square millimeter ◆ Packing: plastic box

|
