Function Description:
The general water pipes, conduit, gas pipe, thick steel pipes, bent at an angle of 90 °.
1/2 "2" forming a 90 °, 21/2 "-4" necessary to move the tube bending, five times to reach detours radians.
Model: SWG-3
Output (T: 19
Stroke (mm): 320
Range (mm): Ø21.3-Ø88.5
Configuration mold: 1/2 ", 3/4", 1 ", 11/4", 11/2 ", 2", 21/2 ", 3"
Pipe wall thickness (mm): 2.75-5
Weight (kg): 116
Volume of 92 × 40 × 23

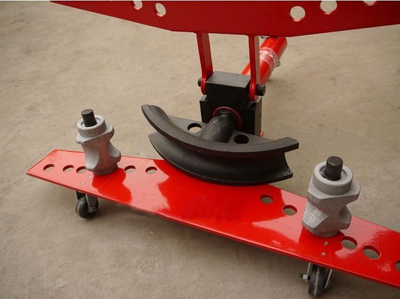

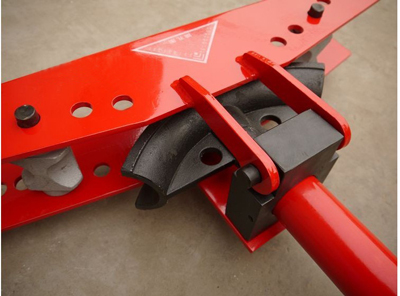

Note: The split hydraulic pipe bender |
