Model: SWG-3B
Details:

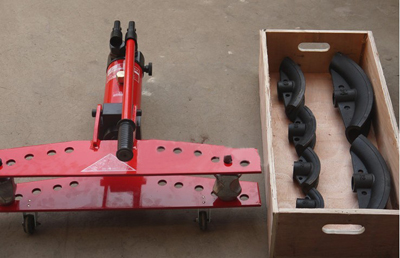

◆ Uses and characteristics: SWG-3B manual hydraulic pipe bender, bending machine is suitable for bending a profiled low pressure fluid pipeline in cold conditions. Such as brass, aluminum, fine bar steel pipe, hydraulic pipe, coated or uncoated tube, ordinary water pipe, thick steel pipe, Barré tube. Can be bent in any direction, the bending angle of 90 degrees, the present machine has a simple structure, easy to operate, a curved arc surface smoothness, and no deformation and wrinkles. Widely used in construction, chemical, plumbing, petroleum, coal, shipbuilding and other industries. Random with a 1/2 ", 3/4", 1 ", 11/4", 11/2 ", 2", 21/2 ", 3" mold of the eight kinds of tubes, made of ductile iron, durable . Tube specifications can be customized mold.
◆ pipe diameter corresponding wall thickness
|
φ21.3 |
φ26.8 |
φ30.5 |
φ42.3 |
φ48 |
φ60 |
φ75.5 |
φ88.5 |
φ108 |
φ133 |
|
2.75 |
2.75 |
3.25 |
3.25 |
3.5 |
3.5 |
3.5 |
3.75 |
4.5 |
5 |
The pipe wall thickness is less than the corresponding value, known as thin-walled tube, bends easily after deformation. With tube wall thickness is reduced ovality, easy to produce wrinkles.
◆ Technical parameters: 1. Contribute: 18T. 2 Stroke: 320mm. 3 Use:, Φ21.5 Φ88 (1/2 "-3"). Weight: 125kg. 5 Dimensions: 92x40x23 |
