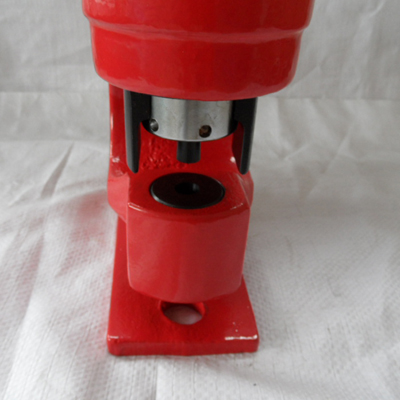

Name: CH-60 hydraulic punching machine
Model: CH-60
Details:

◆ Uses: CH-60 the split hydraulic punching machine hydraulic punching tool developed in recent years for copper, aluminum row, angle iron, iron and other metal material punching. 24 CH-60 punching machines lined up in the following figure, with a large flow hydraulic pump driven by the slats iron, angle red elliptical long holes, 24 holes within 10 seconds like firecrackers turn red finish. Speed, high efficiency, won the user favorite.
◆ Features: 1. Punching speed fast, accurate positioning. No noise, no chips, job security and clean .2. Easy to carry, suitable for field site operations or fixed in the factory mass production. 3 single-hole oil. Adopted the Cr12 through heat treatment and quenching made ​​mold resistance, stamping, and long life. 4. Production the punching molds of various shapes.
◆ Accessories: random with mold Φ10.5 Φ13.8, Φ17.5 Φ20.5 four paid fixed and hex wrench a. The remaining mold:
Φ5.5, Φ6, Φ6.5, ​​Φ7, Φ7.5, Φ8, Φ9 to be customized.
◆ output: 31T
◆ maximum punching thickness: copper, aluminum: 10mm; iron: 6mm
◆ Throat depth: 95mm
◆ Weight: 13.5kg
◆ with pump: hand pump, foot hydraulic pump, hydraulic electric pump
◆ Packing: wooden box
