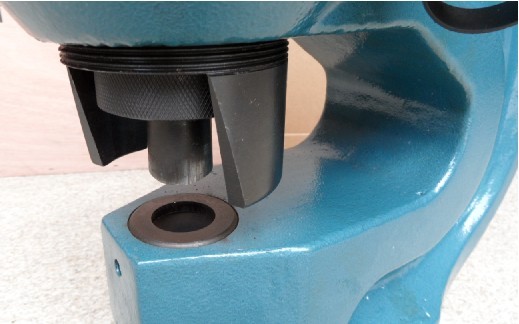

Product Name:CH-80 Hydraulic busbar punching


Product details:



Name
: CH-80 hydraulic punching machine
Type: CH-80
Details:

Uses and characteristics: CH-80 (new) the split hydraulic punching machine This product is used for thick copper row, aluminum bars, iron plate, angle steel, channel steel and other metal materials hydraulic punching tool.
1. Punching fast, accurate positioning. No noise, no chips, operating safe and clean. 2. Easy to carry, suitable for field operations, or fixed at the factory mass production. Two holes-back of oil back to the oil faster. Mold using high-carbon alloy steel resistance, stamping, and long life. 4. Production the punching molds of various shapes.
Accessories: random with mold Φ16, Φ18, Φ22, Φ25 four pay. The rest of the mold to be customized.
output: 50T
maximum punching thickness of: copper, aluminum, iron: 16mm
Throat depth: 115mm
Weight: 40kg
with pump: double-loop hydraulic electric pump or fuel pump
Packing: wooden box
