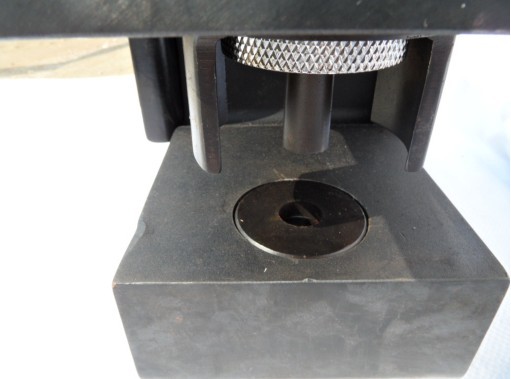

Name: CH-80-1 hydraulic punching machine
Model: CH-80-1
Details:

◆ Uses and characteristics: CH-80-1 (new) split hydraulic punching machine hydraulic punching machine is dedicated to the punching of thick steel plates, thick metal materials such as copper and aluminum row. Main used in the steel, shipbuilding, machinery, heavy industry. 1. Forged steel body line cut from beautiful and durable, will never fracture. 2. Punching fast, accurate positioning. No noise, no chips, operating safe and clean. Easy to carry, suitable for field site operations or fixed in the factory mass production. Two holes-oil line, oil return speed. Mold carbon chrome steel made ​​by heat treatment, stamping, resistance and long life. 5 may be set for the punching molds of various shapes, such as a long strip and square.
◆ Accessories: random with mold Φ16, Φ18, Φ22, Φ25 four pay. The rest of the mold to be customized.
◆ output: 50T
◆ maximum punching thickness: copper, aluminum: 25mm; iron: 20mm
◆ Throat depth: 119mm
◆ Weight: 100kg
◆ with pump: double-loop hydraulic electric pump or fuel pump
◆ Packaging: high strength cardboard boxes
