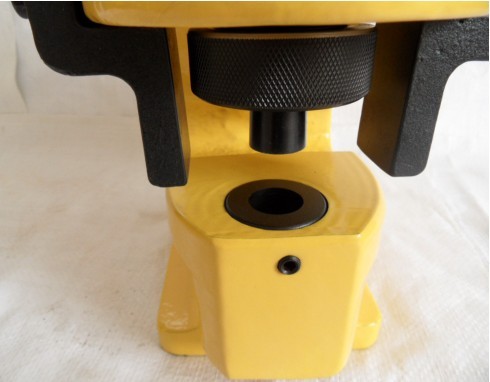

Name: CH-70 hydraulic punching machine
Model: CH-70
Details:

◆ Uses and characteristics: CH-70 split hydraulic punching machine hydraulic punching tool for copper, aluminum row, iron and other metal materials.
1. Punching fast, accurate positioning. No noise, no chips, operating safe and clean. 2. Easy to carry, suitable for field operations, or fixed at the factory mass production. 3 single-hole oil. Carbon tungsten alloy steel mold resistance, stamping, and long life.
4. Production the punching molds of various shapes.
◆ Accessories: random with mold Φ10.5 Φ13.8, Φ17.5, four payment of Φ20.5. The rest of the mold to be customized.
◆ output: 35T
◆ maximum punching thickness of: copper, aluminum: 12mm; iron: 10mm
◆ Throat depth: 110mm
◆ Weight: 28kg
◆ with pump: the need to use one of: manual hydraulic foot hydraulic pump, hydraulic electric pump
◆ Packing: wooden box
